29、部门建立：如何在内核中注册设备

//cosmos/kernel/krlglobal.c
KRL_DEFGLOB_VARIABLE(drventyexit_t,osdrvetytabl)[]={NULL};

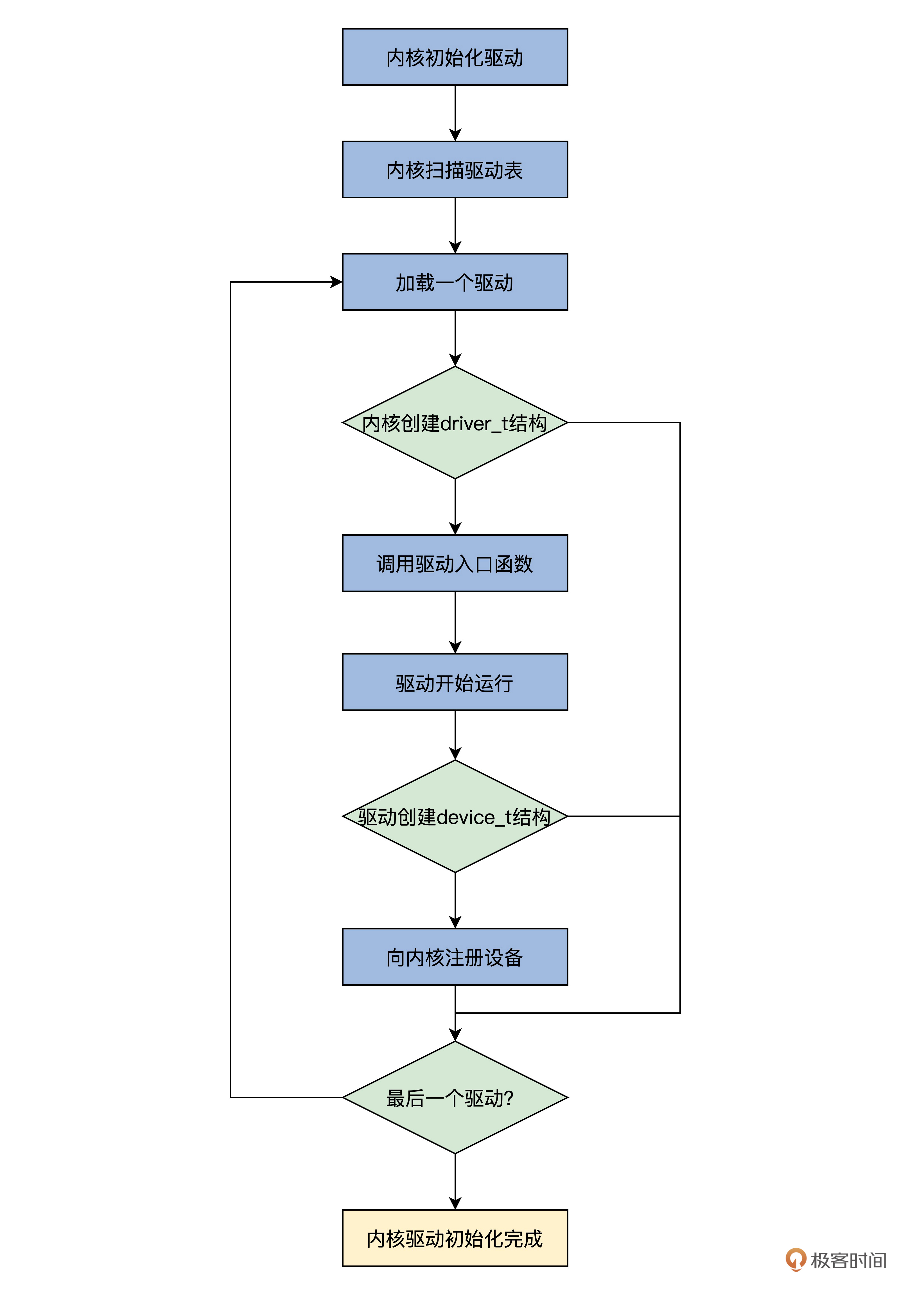

void init_krldriver()
{
    //遍历驱动程序表中的每个驱动程序入口函数
    for (uint_t ei = 0; osdrvetytabl[ei] != NULL; ei++)
    {    //运行一个驱动程序入口
        if (krlrun_driverentry(osdrvetytabl[ei]) == DFCERRSTUS)
        {
            hal_sysdie("init driver err");
        }
    }
    return;
}
void init_krl()
{
    init_krlmm();
    init_krldevice();
    init_krldriver();
    //……
    return;
}

drvstus_t krlrun_driverentry(drventyexit_t drventry)
{
    driver_t *drvp = new_driver_dsc();//建立driver_t实例变量
    if (drvp == NULL)
    {
        return DFCERRSTUS;
    }
    if (drventry(drvp, 0, NULL) == DFCERRSTUS)//运行驱动程序入口函数
    {
        return DFCERRSTUS;
    }
    if (krldriver_add_system(drvp) == DFCERRSTUS)//把驱动程序加入系统
    {
        return DFCERRSTUS;
    }
    return DFCOKSTUS;
}

drvstus_t systick_entry(driver_t* drvp,uint_t val,void* p)
{
    if(drvp==NULL) //drvp是内核传递进来的参数，不能为NULL
    {
        return DFCERRSTUS;
    }
    device_t* devp=new_device_dsc();//建立设备描述符结构的变量实例
    if(devp==NULL)//不能失败
    {
        return DFCERRSTUS;
    }
    systick_set_device(devp,drvp);//驱动程序的功能函数设置到driver_t结构中的drv_dipfun数组中
    if(krldev_add_driver(devp,drvp)==DFCERRSTUS)//将设备挂载到驱动中
    {
        if(del_device_dsc(devp)==DFCERRSTUS)//注意释放资源
        {
            return DFCERRSTUS;
        }
        return DFCERRSTUS;
    }
    if(krlnew_device(devp)==DFCERRSTUS)//向内核注册设备
    {
        if(del_device_dsc(devp)==DFCERRSTUS)//注意释放资源
        {
            return DFCERRSTUS;
        }
        return DFCERRSTUS;
    }
    //安装中断回调函数systick_handle
    if(krlnew_devhandle(devp,systick_handle,20)==DFCERRSTUS)
    {
        return DFCERRSTUS;  //注意释放资源
    }
    init_8254();//初始化物理设备
    if(krlenable_intline(20)==DFCERRSTUS)
    {
        return DFCERRSTUS;
    }
    return DFCOKSTUS;
}

drvstus_t krldev_add_driver(device_t *devp, driver_t *drvp)
{
    list_h_t *lst;
    device_t *fdevp;
    //遍历这个驱动上所有设备
    list_for_each(lst, &drvp->drv_alldevlist)
    {
        fdevp = list_entry(lst, device_t, dev_indrvlst);
        //比较设备ID有相同的则返回错误
        if (krlcmp_devid(&devp->dev_id, &fdevp->dev_id) == TRUE)
        {
            return DFCERRSTUS;
        }
    }
    //将设备挂载到驱动上
    list_add(&devp->dev_indrvlst, &drvp->drv_alldevlist);
    devp->dev_drv = drvp;//让设备中dev_drv字段指向管理自己的驱动
    return DFCOKSTUS;
}

drvstus_t krlnew_device(device_t *devp)
{
    device_t *findevp;
    drvstus_t rets = DFCERRSTUS;
    cpuflg_t cpufg;
    list_h_t *lstp;
    devtable_t *dtbp = &osdevtable;
    uint_t devmty = devp->dev_id.dev_mtype;
    if (devp->dev_drv == NULL)//没有驱动的设备不行
    {
        return DFCERRSTUS;
    }
    krlspinlock_cli(&dtbp->devt_lock, &cpufg);//加锁
    //遍历设备类型链表上的所有设备
    list_for_each(lstp, &dtbp->devt_devclsl[devmty].dtl_list)
    {
        findevp = list_entry(lstp, device_t, dev_intbllst);
        //不能有设备ID相同的设备，如果有则出错
        if (krlcmp_devid(&devp->dev_id, &findevp->dev_id) == TRUE)
        {
            rets = DFCERRSTUS;
            goto return_step;
        }
    }
    //先把设备加入设备表的全局设备链表
    list_add(&devp->dev_intbllst, &dtbp->devt_devclsl[devmty].dtl_list);
    //将设备加入对应设备类型的链表中
    list_add(&devp->dev_list, &dtbp->devt_devlist);
    dtbp->devt_devclsl[devmty].dtl_nr++;//设备计数加一
    dtbp->devt_devnr++;//总的设备数加一
    rets = DFCOKSTUS;
return_step:
    krlspinunlock_sti(&dtbp->devt_lock, &cpufg);//解锁
    return rets;
}

//中断回调函数类型
typedef drvstus_t (*intflthandle_t)(uint_t ift_nr,void* device,void* sframe);
//安装中断回调函数接口
drvstus_t krlnew_devhandle(device_t *devp, intflthandle_t handle, uint_t phyiline)
{
    //调用内核层中断框架接口函数
    intserdsc_t *sdp = krladd_irqhandle(devp, handle, phyiline);
    if (sdp == NULL)
    {
        return DFCERRSTUS;
    }
    cpuflg_t cpufg;
    krlspinlock_cli(&devp->dev_lock, &cpufg);
    //将中断服务描述符结构挂入这个设备结构中
    list_add(&sdp->s_indevlst, &devp->dev_intserlst);
    devp->dev_intlnenr++;
    krlspinunlock_sti(&devp->dev_lock, &cpufg);
    return DFCOKSTUS;
}

typedef struct s_INTSERDSC{
    list_h_t    s_list;        //在中断异常描述符中的链表
    list_h_t    s_indevlst;    //在设备描述描述符中的链表
    u32_t       s_flg;         //标志
    intfltdsc_t* s_intfltp;    //指向中断异常描述符
    void*       s_device;      //指向设备描述符
    uint_t      s_indx;        //中断回调函数运行计数
    intflthandle_t s_handle;   //中断处理的回调函数指针
}intserdsc_t;

intserdsc_t *krladd_irqhandle(void *device, intflthandle_t handle, uint_t phyiline)
{    //根据设备中断线返回对应中断异常描述符
    intfltdsc_t *intp = hal_retn_intfltdsc(phyiline);
    if (intp == NULL)
    {
        return NULL;
    }
    intserdsc_t *serdscp = (intserdsc_t *)krlnew(sizeof(intserdsc_t));//建立一个intserdsc_t结构体实例变量
    if (serdscp == NULL)
    {
        return NULL;
    }
    //初始化intserdsc_t结构体实例变量，并把设备指针和回调函数放入其中
    intserdsc_t_init(serdscp, 0, intp, device, handle);
    //把intserdsc_t结构体实例变量挂载到中断异常描述符结构中
    if (hal_add_ihandle(intp, serdscp) == FALSE)
    {
        if (krldelete((adr_t)serdscp, sizeof(intserdsc_t)) == FALSE)
        {
            hal_sysdie("krladd_irqhandle ERR");
        }
        return NULL;
    }
    return serdscp;
}

drvstus_t krldriver_add_system(driver_t *drvp)
{
    cpuflg_t cpufg;
    devtable_t *dtbp = &osdevtable;//设备表
    krlspinlock_cli(&dtbp->devt_lock, &cpufg);//加锁
    list_add(&drvp->drv_list, &dtbp->devt_drvlist);//挂载
    dtbp->devt_drvnr++;//增加驱动程序计数
    krlspinunlock_sti(&dtbp->devt_lock, &cpufg);//解锁
    return DFCOKSTUS;
}
